18sound 12ncx750 Coaxial

From 18sound
Recommended retail price
936€

    Available options

  • 18sound 12ncx750 Coaxial - D-KIT 12NCX750 HF
  • 18sound 12ncx750 Coaxial - HP 12 NCX750
  • 18sound 12ncx750 Coaxial - R-KIT 12 NCX750 LF

COAXIALS Neodymium

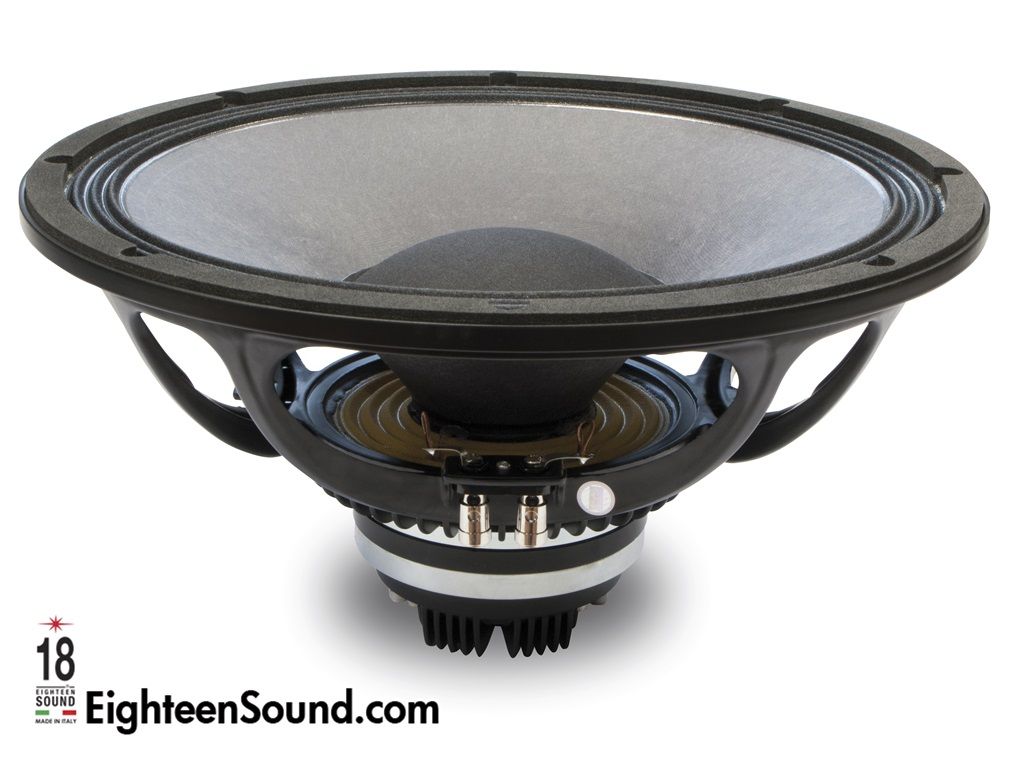

12NCX750 – Haut-parleur coaxial 12′ (8 ohm)

(code : ALT120750CX08NA)

Garantie 3 ans

Options d’achat:

  • HP
  • R-KIT – Kit remembranage – voir document PDF ‘Recone procedure’
  • D-KIT– Kit Diaphragme – voir PDF ‘Diaphragm procedure’

High Output Neo Coaxial Transducer

Key Features

  • 97dB LF / 106.5dB HF SPL 1W/1m average sensitivity
  • Single magnet neodymium motor
  • 800W LF - 240W HF maximum program power handling
  • 75 mm (3') LF Interleaved Sandwich Voice coil (ISV)
  • Aluminum demodulating ring (SDR) for minimum LF distortion
  • 60 mm (2.4') HF Titanium diaphragm
  • Edge-wound Aluminum ribbon HF voice coil (EWAL)
  • HF copper sleeve for reduced distortion and higher output
  • 80 degrees nominal conical dispersion
  • Suitable for very compact enclosures and stage monitor
