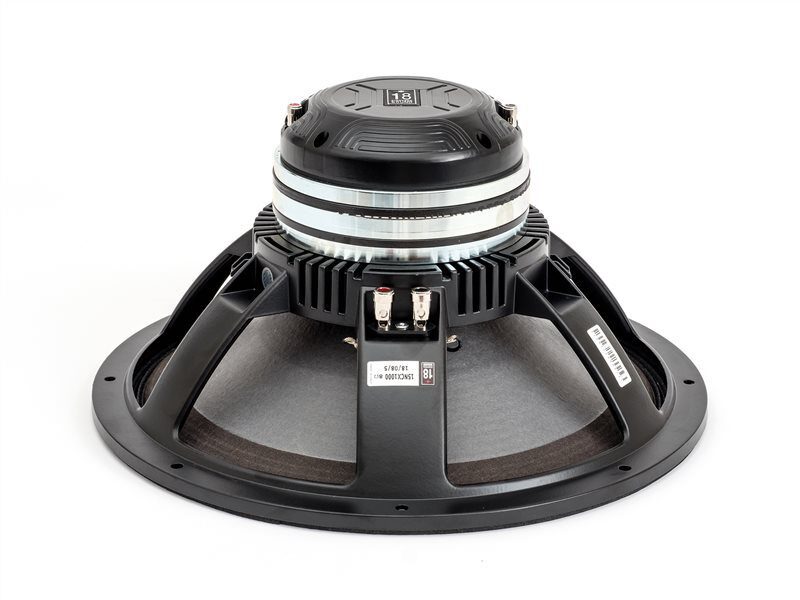

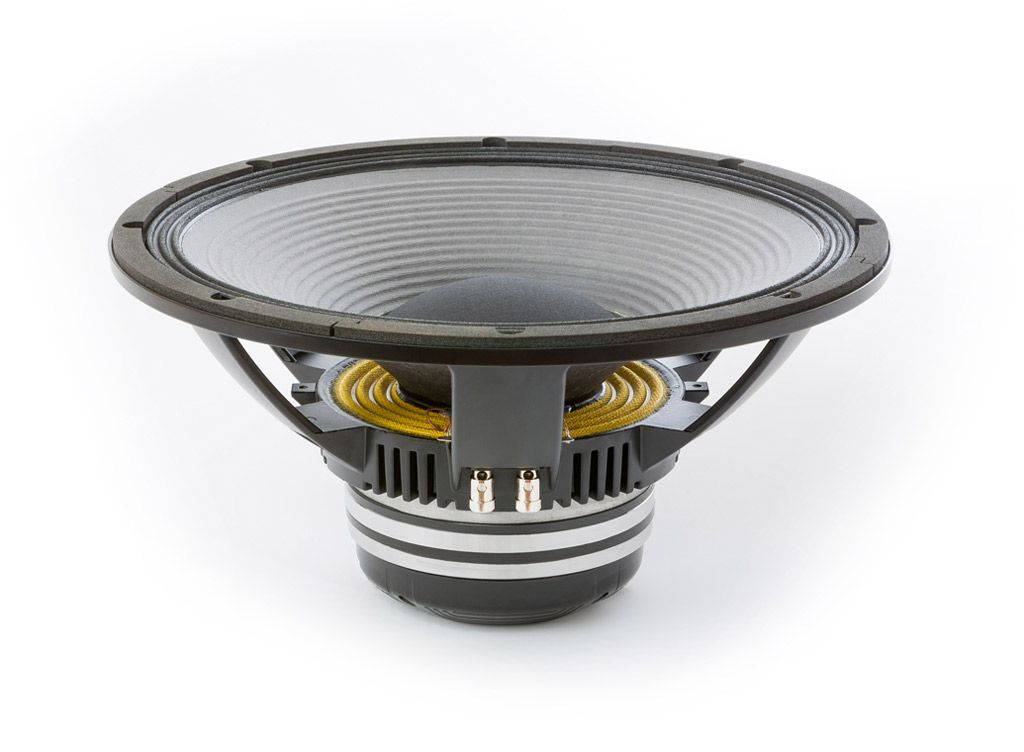

18sound 15ncx1000 Coaxial

From 18sound

Le 18sound 15NCX1000 est un haut-parleur coaxial de haute qualité, conçu pour offrir une reproduction sonore exceptionnelle avec une réponse en fréquence étendue et une distorsion minimale. Doté d’un woofer de 15 pouces et d’un moteur d’aigu intégré, ce haut-parleur est parfait pour les applications professionnelles exigeantes où la clarté et la puissance sont primordiales.

Recommended retail price
1 680€

    Available options

  • 18sound 15ncx1000 Coaxial - D-KIT 15NCX1000 HF
  • 18sound 15ncx1000 Coaxial - HP 15NCX1000
  • 18sound 15ncx1000 Coaxial - R-KIT 15NCX1000 LF

COAXIALS Neodymium

15NCX1000 – Haut-parleur coaxial 15′ (8 ohm)

code: ALT151000CX08NC

15”/1,5” High Output Coaxial – 4” LF/4” HF vc – 1600W/260W – 96.5/106.5 dB@1W/1mt – ISV – SDR – EWAL

Garantie 3 ans

Options d’achat:

  • HP
  • R-KIT – Kit remembranage – voir document PDF ‘Recone procedure’
  • D-KIT– Kit Diaphragme – voir PDF ‘Diaphragm procedure’

Single Motor Dual Magnet Coaxial Transducer

Key Features
  • 96dB LF -109dB HF SPL 2.83v average sensitivity
  • Dual neodymium magnet single motor
  • 800W LF - 130W HF maximum program power handling
  • Smooth on/off axis 90° response
  • 100 mm (4”) Interleaved Sandwich LF Voice coil (ISV)
  • Aluminum Demodulating Ring (SDR) for minimum LF distortion
  • 100 mm (4”) Edge-wound Aluminum ribbon HF voice coil (EWAL)
  • HF pure titanium diaphragm
  • HF copper sleeve for reduced distortion and higher output
  • Smooth on/off axis 90° response
  • Suitable for compact enclosures and stage monitors
LF General Specifications
  • Nominal Diameter 380 mm (15 in)
  • Rated Impedance 8 Ohm
  • AES Power (1) 800 W
  • Program Power (2) 1600 W
  • Sensitivity (4) 96 dB
  • Frequency Range (5) 50 ÷ 3200 Hz
  • Max Recomm. Frequency 1200 Hz
  • Recomm. Enclosure Volume 65 ÷ 125 lt. (2,30 ÷ 4.42 cuft)
  • Minimum Impedance 6,1 Ohm at 25°C
  • Max Peak To Peak Excursion 26 mm (1,02 in)
  • Voice Coil Diameter 100 mm (3,94 in)
  • Voice Coil Winding Material CCAW
  • Suspension Triple roll, polycotton
  • Cone Curvilinear composite, Water repellent
HF General Specifications
  • D.C. Resistance 4,7 Ohm
  • Continuous Power (7) 130 W
  • Max. program power (8) 260 W
  • Sensitivity (9) 109 dB
  • Frequency Range 500 ÷ 19300 Hz
  • Recomm. Xover Frequency 1 kHz
  • Diaphragm material Titanium
  • Voice Coil diameter 100 mm
  • Voice Coil winding material Edge-wound CCAW
  • Magnet material Neodymium
