18sound 15ncx750h Coaxial

From 18 Sound
Recommended retail price
1 044€

    Available options

  • 18sound 15ncx750h Coaxial - D-KIT NCX750 HF
  • 18sound 15ncx750h Coaxial - HP 15NCX750H
  • 18sound 15ncx750h Coaxial - R-KIT15NCX750 LF

COAXIALS Neodymium

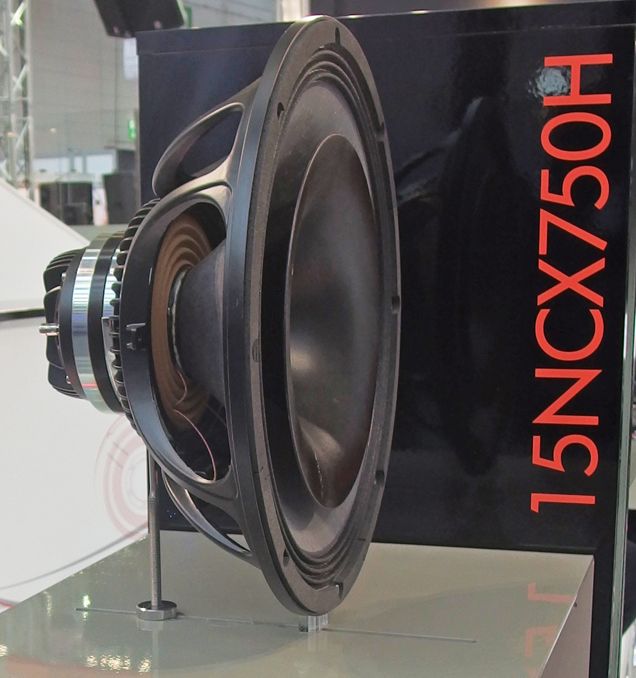

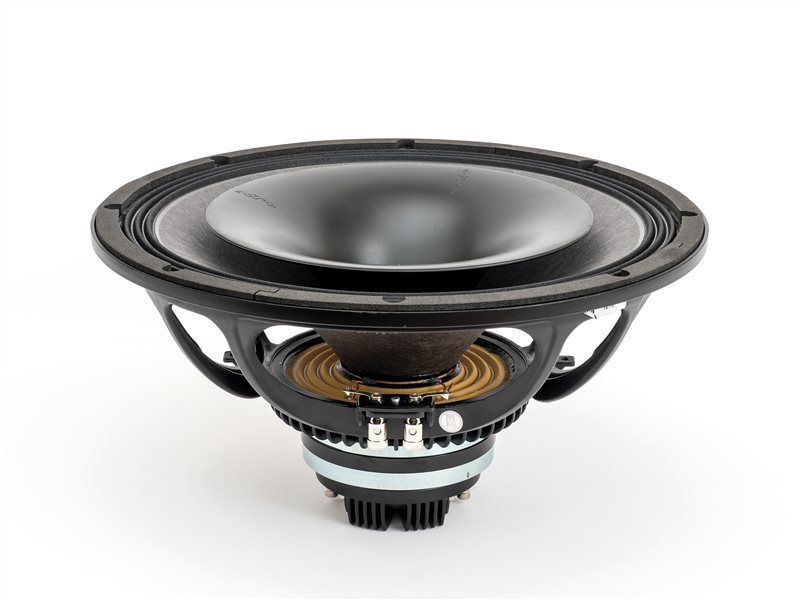

15NCX750H Haut-parleur coaxial 15′ (8 ohm)

code : ALT150750CX08NC

C’est le haut-parleur 15NCX750 équipé avec un horn 70° x 50°

https://www.youtube.com/watch?v=UpgyeTKvrdI

High output neodymium coaxial transducer

Key Features

  • 98 dB LF / 109 dB HF SPL 1W/1m average sensitivity
  • Single magnet neodymium motor
  • 800W LF - 240W HF maximum program power handling
  • Smooth on/off axis 90° x 50° response
  • 75 mm (3”) Interleaved Sandwich LF Voice coil (ISV)
  • Aluminum Demodulating Ring (SDR) for minimum LF distortion
  • 60 mm (2.4”) HF pure Titanium diaphragm
  • Edge-wound Aluminum ribbon HF voice coil (EWAL)
  • HF copper sleeve for reduced distortion and higher output
  • Smooth on/off axis 90° x 50° response
  • Suitable for compact enclosures and stage monitors
