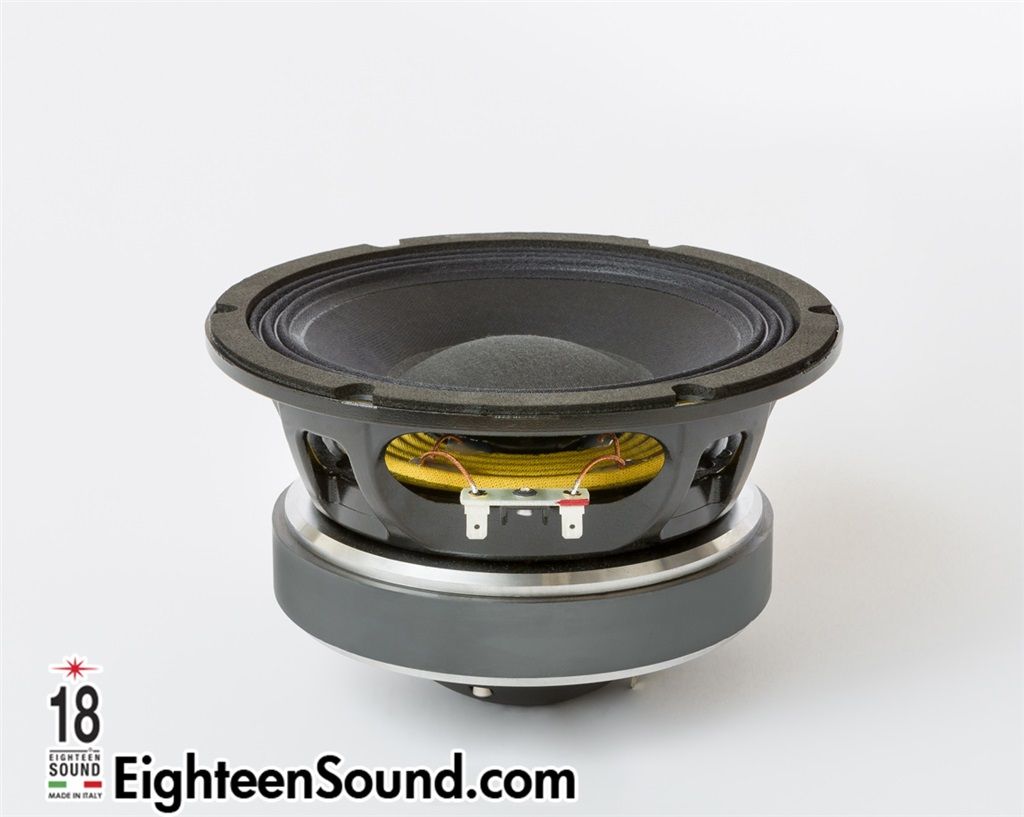

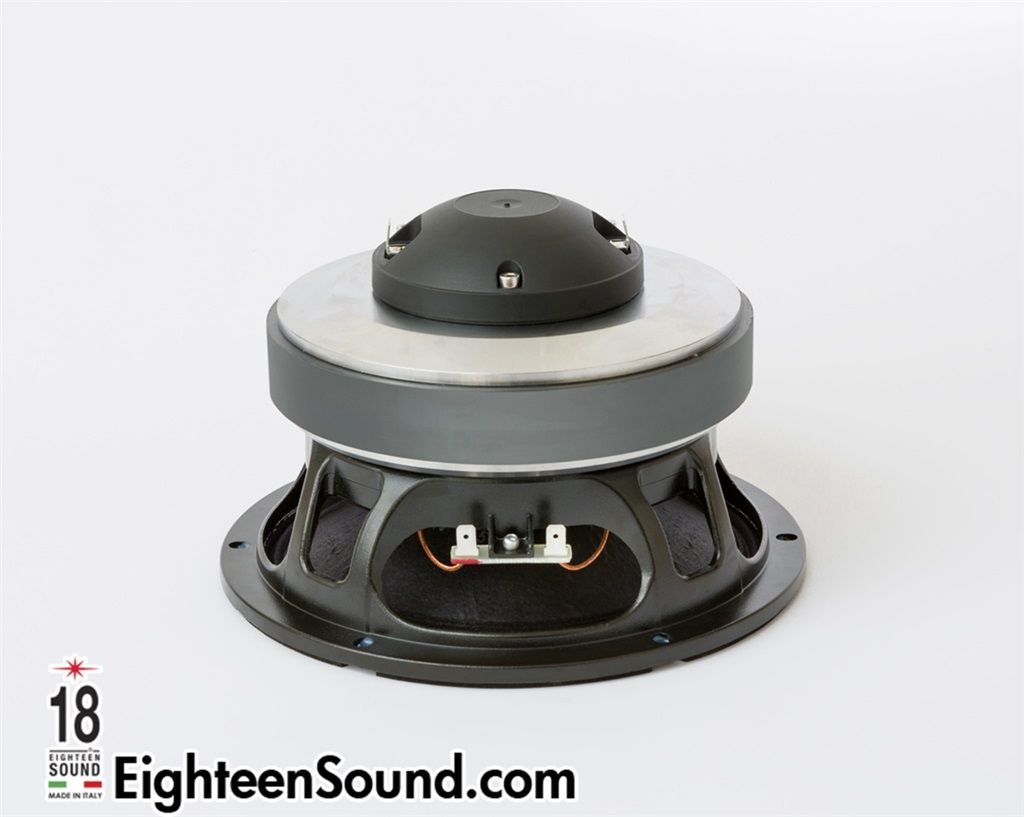

18sound 8cx650 Coaxial
From 18 Sound
Recommended retail price
571€
- 18sound 8cx650 Coaxial - D-KIT 8 CX650 HF
- 18sound 8cx650 Coaxial - HP 8 CX650
- 18sound 8cx650 Coaxial - R-KIT 8 CX650 LF
Available options
- Description
- Technical specifications
- Notice
COAXIALS Ferrite
18sound 8CX650 – Haut-parleur coaxial 8′ (8 ohm)
code : ALT080650WF08FA
Options d’achat:
- HP
- R-KIT – Kit remembranage – voir document PDF ‘Recone procedure’
- D-KIT– Kit Diaphragme – voir PDF ‘Diaphragm procedure’
Single Magnet Ferrite Coaxial Transducer
Key Features
- 91 dB LF/106 dB HF SPL 1W/1m average sensitivity
- Single magnet motor
- 400W LF - 140W HF maximum program power Handling
- 65 mm (2.5”) Edge wound Aluminum LF voice coil (EWAL)
- 44 mm (1.75”) HF PEN diaphragm
- Proprietary Phase Plug design
- HF copper sleeve for reduced distortion and higher output
- 90 degrees nominal conical dispersion
- Atmos™ ready *
- Extended LF design
- Suitable for very compact enclosures and stage monitors
* Atmos™ is a Dolby registered trademark. Atmos is a cinema audio design standard
