18sound Nd1070
From 18 Sound
Recommended retail price
182€
- 18sound Nd1070 - D-KIT
- 18sound Nd1070 - HP 16 ohm
- 18sound Nd1070 - HP 8 ohm
Available options
- Description
- Technical specifications
- Notice
NEODYMIUM COMPRESSION DRIVERS

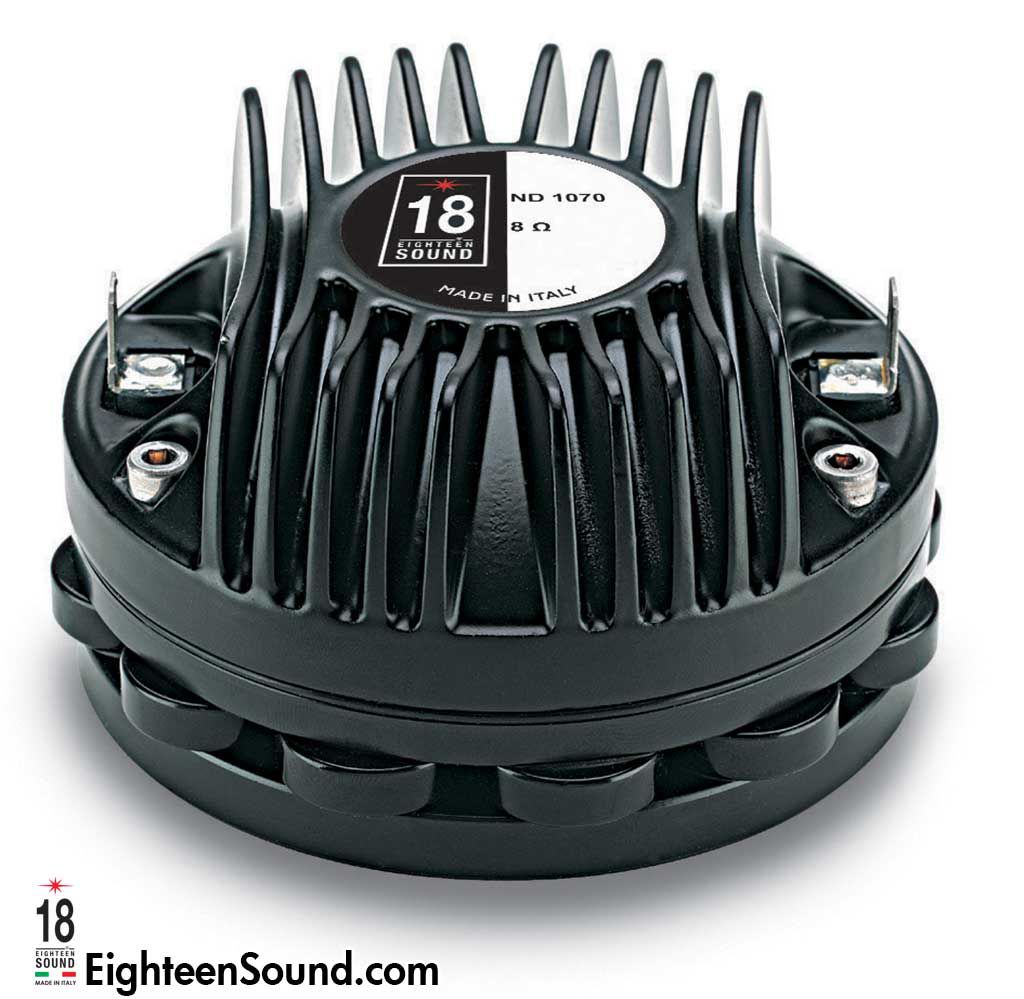

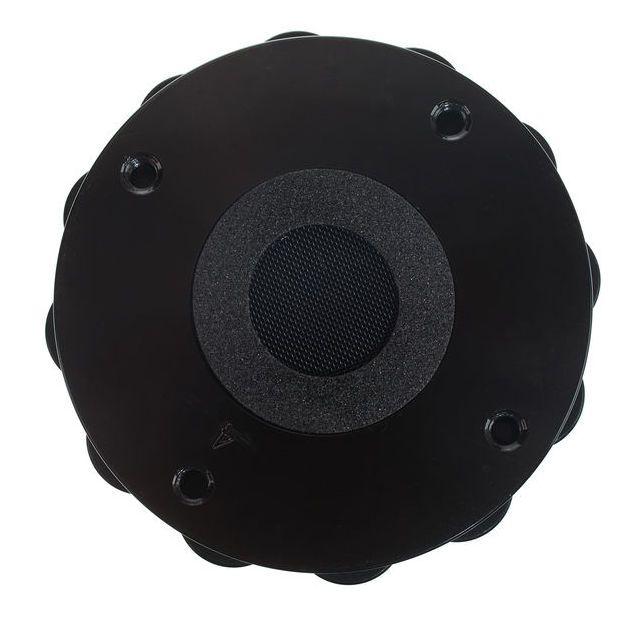

1” exit HF Neo Driver – ND1070 (8/16 ohm)
code : DRV101070TP08NA
18Sound ND 1070 – Moteur de 1′
- Puissance: 50 W AES a partir de 1600 Hz
- Sensibilité (1W / m): 109 dB
- Fréquence: 1600 – 20.000 Hz
- Diaphragme titane: 44,4 mm
- Poids: 1,1 kg
Options d’achat:
- HP
- D-KIT: voir document PDF ‘Diaphragm procedure’
KeyFeatures
- 109 dB SPL 1W / 1m average sensitivity
- 1 inch exit throat
- 44 mm (1 3/4 inch) edgewound aluminum voice coil
- 100 Watt program power handling
- Titanium dome over polyester suspension
- Proprietary phase plug design
- Neodymium magnetic structure
- Excellent thermal exchange

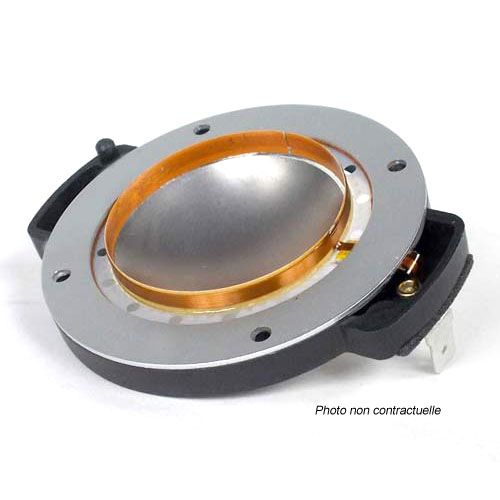

D-KIT ND1070
